HKCT21AM series of micro-precision vertical wear exchange current transformer

First, characteristics:
1, vertical core printed circuit board directly to wear welding installation, pleasing in appearance;
2, small size, high accuracy; completely closed, mechanical and environmental performance and resistance, voltage isolation capability is strong, safe and reliable.

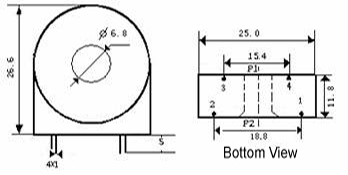

Second, the shape map, installation size and coil Banner:


Third, performance parameters:

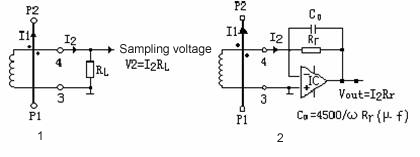

1, with direct access to sampling resistor law voltage (as shown in Figure 1) performance parameters see Table 1;
2, the sample obtained by using IC voltage (as shown in Figure 2) performance parameters in Table 2


Table 1:

Table 2:
