HKCT020 micro-precision exchange current transformer
First, characteristics:
1, sub-output lead, pleasing in appearance, convenience welding installation;
2, small size, high accuracy; completely closed, mechanical and environmental performance and resistance, voltage isolation capability is strong, safe and reliable.
Second, the shape map, installation size map:
Third, performance parameters:

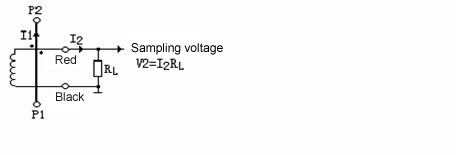

Direct access by sampling resistor voltage (as shown below), the performance parameters in Table 1;
Table 1:
| Model |
Rated input
Current |
Rated outputCurrent |
Rated sampling
ResistivityRL |
Rated samplingVoltage |
Phaseshift |
Non-Line
Degree of |
Pressure |
|
HKCT020M |
0-20A |
0-20mA |
100Ω |
2V |
≤5’ |
≤0.1% |
≥6KV |
Fourth, use:
HKCT020 micro-precision exchange Current Transformer: Bus P2-CORE with the same name as the red-lead. Wire length can be designed according to user requirements. Europe and the United States produced in accordance with customer requirements, form factor and performance parameters are in line with customer demand in Europe and America.
