HKCT035 large precision exchange current transformer

First, characteristics:
1, sub-output lead, pleasing in appearance, convenience welding installation;
2, completely closed, mechanical and environmental performance and resistance, voltage isolation, and a strong ability pleasing in appearance.

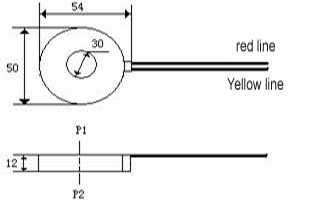

Second, the shape map, installation size map:


Third, performance parameters:

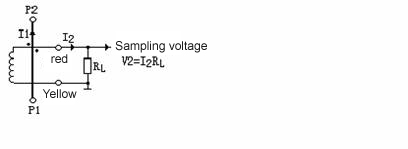

Direct access by sampling resistor voltage (as shown below), the performance parameters in Table 1;

Table 1

Fourth, use:
     HKCT035 large sophisticated exchanges Current Transformer: Bus P2-CORE with the same name as the red-lead. Wire length can be designed according to user requirements.
