HKCT23M series of micro-precision vertical wear exchange current transformer

First, characteristics:

1, vertical core printed circuit board directly to wear welding installation, pleasing in appearance;
2, small size, high accuracy; completely closed, mechanical and environmental performance and resistance, voltage isolation capability is strong, safe and reliable.
Second, security features:

1, insulation resistance: normal when more than 1000 megohms;
2, anti-electric intensity: affordable Frequency 6000 V / 1 minute;
3, flame retardant: meet UL94 - Vo-class.

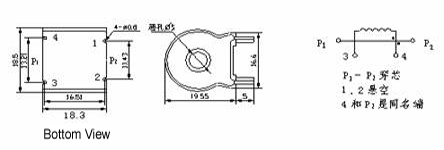

Third, contour map, installation size and coil Banner:

Fourth, performance parameters:

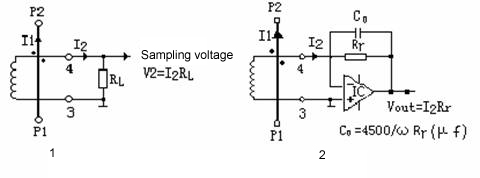

1, with direct access to sampling resistor law voltage (such as右图one shown) performance parameters see Table 1;
2, the sample obtained by using IC voltage (such as右图2 shown) performance parameters in Table 2

Table 1：

Table 2
