HKCT26NE serial bus with built-in measurement precision current transformer
First, characteristics:
1, for the built-in input coil; compact portable, printed circuit board directly welding installation;
2, completely closed, mechanical and environmental performance and resistance, voltage isolation, and a strong ability pleasing in appearance.
Second, security features:
1, insulation resistance: normal when more than 1000 megohms;
2, anti-electric intensity: affordable Frequency 2500 V / 1 minute;
3, flame retardant: meet UL94 - Vo -

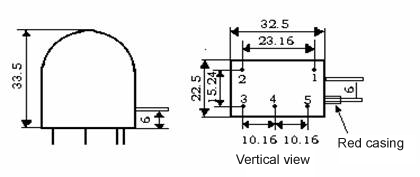

Third, contour map, installation size and coil Banner:
(As shown below).
Fourth, performance parameters:
|
Model |
Rated
Input / Output |
Error
Lines
Degree of |
Linear Scope |
Rated point angle difference |
|
HKCT26NE-5A/0～7.07V |
5A/0～7.07V |
0.1L |
>120% |
5´～10´ |
|
HKCT26NE-10A/0～7.07V |
10A/0～7.07V |
0.1L |
>120% |
Fifth. Use:
HKCT26NE measuring current transformer: Vertical primer needle, primary lateral fuse way. The initial sets of red casing side in the lead primer needle 5 side, and with the primer-needle 3 for the same name. Primers needle 2,3 for the secondary, which fixed needle 1,5 only play the role (with primers needle may also lead Linked), primers needle 4 for shielding.
