HKCT32C series of horizontal exchange of wear-micro-precision current transformer

First, characteristics:
1, horizontal core printed circuit board directly to wear welding installation, pleasing in appearance;
2, small size, high accuracy; completely closed, machinery and the environment and good resistance, voltage isolation capability is strong, safe and reliable.

Second, security features:
1, insulation resistance:
Normal when more than 1000 megohms;
2, anti-electric intensity:
Affordable Frequency 6000 V / 1 minute;
3, flame retardant: meet UL94 - Vo-class.

Third, contour map, installation size and coil Banner:
1, HKCT32C
(Output narrow winding pin spacing)

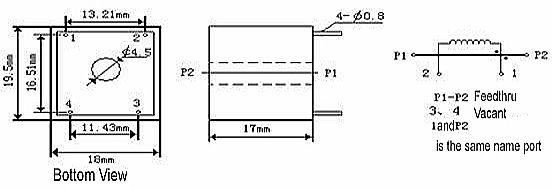

2, HKCT32C
(Winding-pin output width spacing)

Table 1:
