HKCT91M series of sophisticated high current transformer
First, characteristics:
1, using vertical fixed base CORE, firmly installed;
2, completely closed, mechanical and environmental performance and resistance, voltage isolation, and a strong ability pleasing in appearance.
Second, security features:
1, insulation resistance: normal when more than 1000 megohms;
2, anti-electric intensity: affordable Frequency 6000 V / 1 minute;
3, flame retardant: meet UL94 - Vo -

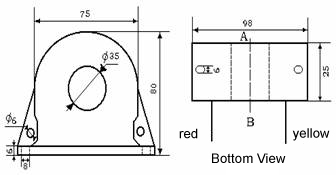

Third, contour map, installation size and coil Banner:
(As shown below).
Fourth, performance parameters:
| Model |
Rated
Importation |
Rated
output |
Error Line Degree of |
Linear
Scope |
Rated point angledifference |
Isolation
Pressure |
|
HKCT91M |
50A～1000A |
0～200mA |
0.2L |
1.2times |
〈5´ |
6KV |
Fifth. Use:
HKCT91M large current precision transformer: A CORE bus terminal and the same name for the yellow-lead. Wire length can be designed according to user requirements.
