TA1 vertical wear micro-core current transformer precision exchange (1000:1)

First, characteristics:
1, vertical core printed circuit board directly to wear welding installation, pleasing in appearance;
2, small size, high accuracy; completely closed, mechanical and environmental performance and resistance, voltage isolation capability is strong, safe and reliable.

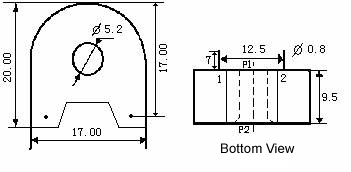

Second, the shape map, installation size map:


Third, performance parameters:

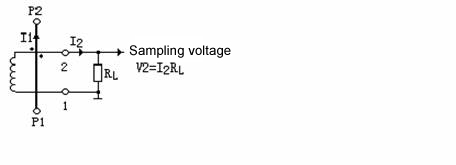

Direct access by sampling resistor voltage (as shown below), the performance parameters in Table 1;
Table 1:

Fourth, use:
     TA1 accordance with the requirements of European and American customers produced, and its dimensions and performance parameters are in line with European and American customers request.
