HKCT26QE serial bus with built-in measurement precision current transformer
First, characteristics:
1, for the built-in input coil; compact portable, printed circuit board directly welding installation;
2, completely closed, mechanical and environmental performance and resistance,
voltage isolation, and a strong ability pleasing in appearance.
Second, security features:
1, insulation resistance: normal when more than 1000 megohms;
2, anti-electric intensity: affordable Frequency 2500 V / 1 minute;
3, flame retardant: meet UL94 - Vo -

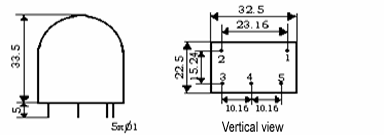

Third, contour map, installation size and coil Banner:
(As shown below).
Fourth, performance parameters:
| Model |
Rated
Input / Output |
Transient
Input / Output |
Error
Line Degree of |
The scope of overload |
|
HKCT26QE-20A/0～7.07V |
1A/0～7.07V |
20A/0～7.07V |
0.2L |
1.2timesTransient |
|
HKCT26QE-100A/0～7.07V |
5A/0～7.07V |
100A/0～7.07V |
0.2L |
1.2timesTransient |
Fifth. Use:
HKCT26QE transient current transformer protection: Vertical primer needle, primary lateral fuse way.
The initial sets of red casing side in the lead primer needle 5 side, and with the primer-needle 3 for the
same name. Primers needle 2,3 for the secondary, which fixed needle 1,5
only play the role (with primers needle may also lead Linked),
primers needle 4 for shielding.
