HKPT26 Series AC voltage-voltage transformer
First, characteristics:
1, compact portable, printed circuit board directly welding installation;
2, completely closed, mechanical and environmental performance and resistance, voltage isolation, and a strong ability pleasing in appearance.
Second, security features:
1, insulation resistance: normal when more than 1000 megohms;
2, anti-electric intensity: affordable Frequency 2500 V / 1 minute;
3, flame retardant: meet UL94 - Vo -

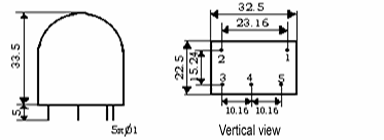

Third, contour map, installation size and coil Banner:
(As shown below).
Fourth, performance parameters:
|
Model |
Rated input |
Rated output |
ErrorLine Degree of |
LinearScope |
RatedPoint angle difference |
Isolation
Pressure |
|
HKPT26 |
0～250V |
0～7.07V |
0.1L |
1.2times |
〈5´ |
2500V |
Fifth. Use:
HKPT26 series voltage transformer: primer needle 1,5 for primary, secondary primers needle 2,3 for, primer-needle 1,2 for the same name. Primers needle 4 for shielding.
